Cuplock Systems scaffolding


Cuplock Systems Scaffolding is the most used system scaffold in Saudi Arabia & Middle East. (UAE United Arab Emirates, Saudi Arabia, Kuwait, Qatar, Bahrain, Oman). SPAR manufacture and supply premium quality range of Cuplock Scaffolding Systems in Saudi Arabia which deals in Cuplock Systems, Cuplock ledger, Cuplock standard, Cuplock transom and many more..

We also manufacture and supply our own equivalent of the Kwik stage and SP-LOK (equivalent of Cuplock) scaffolding systems manufactured in accordance with all British, EU and International standards,

VERTICAL STANDARD(OPEN END)

Scaffolding Cuplock Systems

Made from 48.3mm diameter x 3.2mm thick high grade steel tube conforming to EN 10219,Standards(Vertical) are formed by two cups a fixed bottom cup which is welded to the standard (Vertical ) at pre-located intervals i.e. 500mm and a sliding top cup. The forged blade ends of the Ledger(Horizontal) are located into the bottom cup. The top cup is moved down and rotated to secure the components in place and tightened by a hammer blow to give a positive and rigid connection

LEDGER (HORIZONTAL)

LEDGER

Made from 48.3mm diameter high grade steel tube conforming to EN10219 with forged steel blade ends, which locate into the bottom cups of the Standard(Vertical) and locked in place by the corresponding

INTERMEDIATE TRANSOM (HORIZONTAL)

Scaffolding Products

Made from 48.3mm diameter high grade steel tube conforming to EN10219. They rest upon the ledgers at right angles to reduce the span and provide extra support for boards. One end is provided with an integral locking device to prevent any movement along the ledgers during use.

BEAM BRACKET

Beam Bracket

Beam Bracket are made from 48.3mm diameter high grade steel tube conforming to EN10219 and are used to provide support to beam formwork from also support standards with provision for accepting jacks or fork heads. It has a safe load carrying capacity of 1500 kgs.The beam bracket distributes the load throughout the surrounding cuplock system structure, thus reducing excessive strain on all components

TUBULAR HOP-UP BRACKETS

TUBULAR HOP UP BRACKETS

Hop-up Bracket are made from 48.3mm diameter high grade steel tube conforming to EN10219 and are used to increase the width of working platform used in conjuction with transoms/intermediate transoms or inside-board transoms. They incorporate a cup joint at the outside end to allow the fitting of an inside ledger which links the hop-up brackets and supports transoms/intermediate transoms.

CANTILEVER FRAME

CANTILEVER FRAME

This frame has ledger blades to be fitted into Cuplock standards at one end and with provision for accepting jacks in three positions at the other end at 1.2m,1.25m and 1.3m from centerline of the standard.

CANTILEVER BEAM FRAME

CANTILEVER BEAM FRAME
Finish Available: Painted & Hot Dip Galvanized

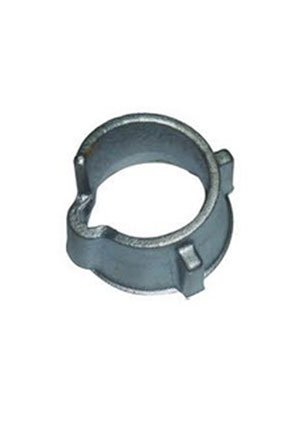

TOP CUP

scaffolding top cup
The captive mobile cups are made out of Drop Forged Iron to ensure rough site handling

BOTTOM CUP

cuplock scaffolding
Bottom cups are pressed from high quality steel and are welded on vertical.

LEDGER BLADE

Cuplock Scaffolding Manufacturer

SPIGOT

Cuplock Scaffolding supplier
Finish Available: Painted & Hot Dip Galvanized

HEAVY DUTY FEMALE TYPE CASTER WHEEL

caster wheel female
Heavy Duty Female Type Caster Wheels used for Mobile Scaffolding made from Tube and Coupler Type Scaffolding 8 Inches Wheel Diameter and can takes load upto 1200 kg (12 kN) with Double stopper locks
Available: Rubber Tyred and Nylon Tyred

HEAVY DUTY MALE TYPE CASTER WHEEL

caster wheel male
Heavy Duty Male Type Caster Wheels used for Mobile Scaffolding made from System Scaffolding like Cuplock, Kwikstage, Ring Lock etc. 8 Inches Wheel Diameter and can takes load upto 1200 kg (12 kN) with Double stopper locks
Available: Rubber Tyred and Nylon Tyred
