MS Scaffolding Pipes & Tubes

MS Scaffolding Pipes & Tubes

Steel Tubes for Scaffolding System Manufacturing and Fabrication

SPAR supplies a wide range of mild steel (MS) pipes and tubes used for manufacturing scaffolding systems, structural scaffold components, and access equipment. These tubes are widely used by scaffolding manufacturers and fabricators to produce components such as:

  • Ringlock scaffolding systems
  • Cuplock scaffolding systems
  • Ladder beams
  • Lattice beams
  • Steel scaffold ladders
  • Adjustable jack bases
  • Prop systems

Manufactured using precision ERW tube technology, SPAR MS scaffolding tubes offer excellent weldability, dimensional accuracy, and structural reliability.

Product Overview

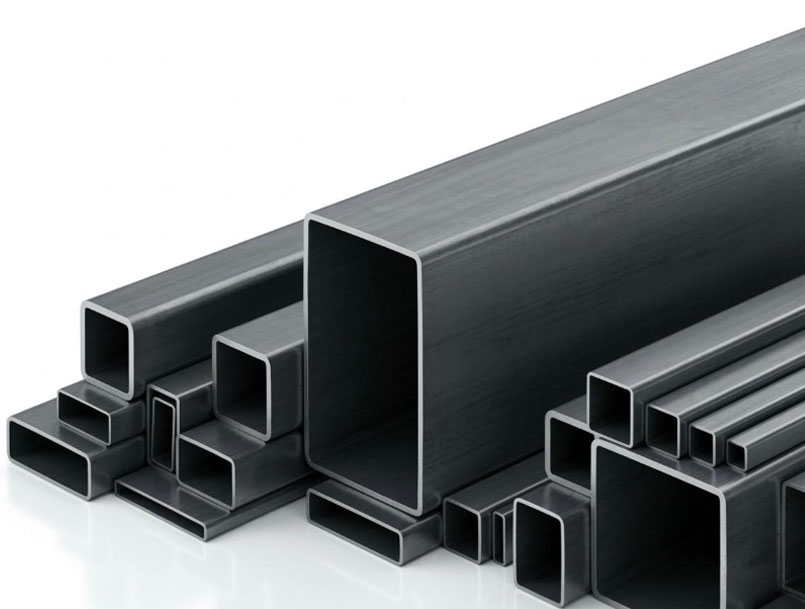

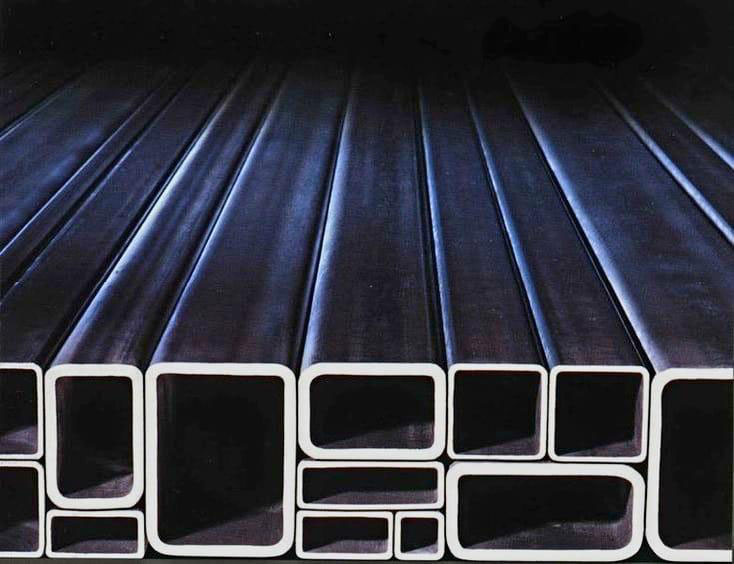

MS scaffolding pipes and tubes are essential raw materials used in the fabrication of modular scaffolding components. Unlike finished scaffolding tubes used in tube-and-coupler systems, these tubes are supplied to scaffolding manufacturers and fabricators for producing various structural scaffold components. SPAR supplies tubes in multiple profiles including:

  • round pipes

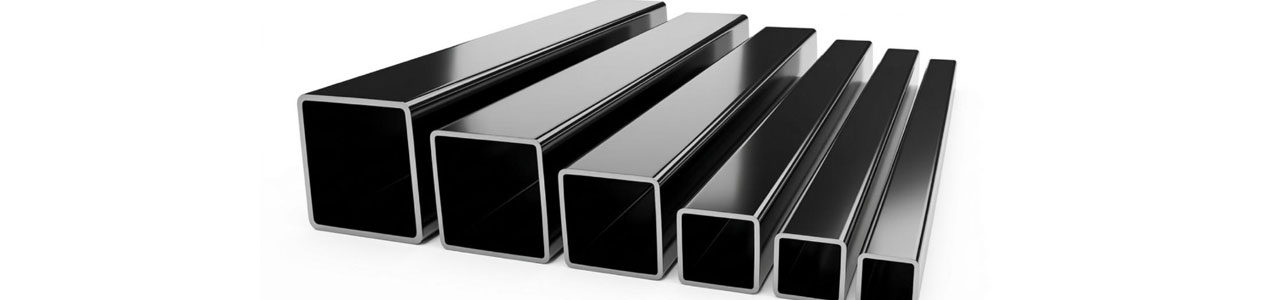

  • square tubes
  • rectangular hollow sections

These tubes are manufactured according to structural steel standards ensuring reliable fabrication performance.

Key Features and Advantages

  • Excellent Fabrication Properties: Mild steel tubes offer superior weldability and formability, making them ideal for manufacturing scaffolding components.
  • Consistent Dimensional Accuracy: Precision tube manufacturing ensures uniform wall thickness and reliable structural performance.
  • Multiple Profile Options: Available in round, square, and rectangular profiles for different scaffold components.
  • Reliable Structural Performance: Manufactured from structural steel grades suitable for heavy-duty scaffolding fabrication.

Common Tube Sizes Used in Scaffolding Fabrication

Tubes for System Scaffolding Manufacturing

Size Thickness Application
48.3 mm OD 3.0 mm / 4.0 mm Ringlock / Cuplock Standards
60 mm OD 3.0 – 4.0 mm Prop Systems

Tubes for Adjustable Jack Components

Size Thickness Application
38 mm OD 4.0 – 5.0 mm Adjustable Jack Stem
48 mm OD 4.0 mm Heavy-Duty Jacks

Tubes for Scaffolding Ladder and Structural Fabrication

Size Thickness Application
25 × 50 mm 2.0 mm Steel Scaffold Ladder
25 × 25 mm 3.2 mm Cuplock Spigot
40 × 40 mm 2.0 mm Ladder Frames

Tubes for Ladder Beams and Lattice Beams

Size Thickness Application
48.3 mm OD 3.0 mm Lattice Beam
48.3 mm OD 4.0 mm Heavy-Duty Ladder Beam

Steel Grades

Steel Grade Standard
S235 EN Structural Steel
S275 EN Structural Steel
Mild Steel (MS) General Structural Fabrication

These grades offer excellent weldability and structural reliability for scaffold manufacturing.

Manufacturing Standards

  • EN 10219 – Cold formed structural steel tubes
  • EN 10210 – Hot finished structural tubes
  • ASTM A500 – Structural tubing standard

These standards ensure dimensional accuracy, weld integrity, and mechanical performance.

Applications

  • scaffolding manufacturers
  • scaffolding rental companies
  • fabrication workshops
  • construction contractors
  • infrastructure projects

Typical fabricated components include:

  • ringlock scaffolding standards and ledgers
  • cuplock scaffolding standards
  • scaffold ladder systems
  • ladder beams and lattice beams
  • adjustable base jacks
  • prop systems

Why Fabricators Choose SPAR Tubes

  • high weldability steel
  • precise dimensional tolerance
  • consistent wall thickness
  • reliable supply for production
  • suitable for automated fabrication lines

SPAR tubes provide reliable raw materials for manufacturing high-performance scaffolding systems and structural access equipment.
