Aluminum Scaffolding Straight Ladder

(A Lightweight Access Solution for Industrial & Maintenance Applications)

ALTRAD SPAR is a provider of aluminum scaffolding straight ladders that are engineered to facilitate safe, lightweight, and corrosion-resistant access in industrial maintenance, facility management, and construction settings. Although the main focus of ALTRAD SPAR is still on heavy-duty steel scaffolding systems for Aramco and SABIC projects, aluminum straight ladders are available as a complementary access solution for non-load-bearing, short-duration, and secondary access applications.

Overview

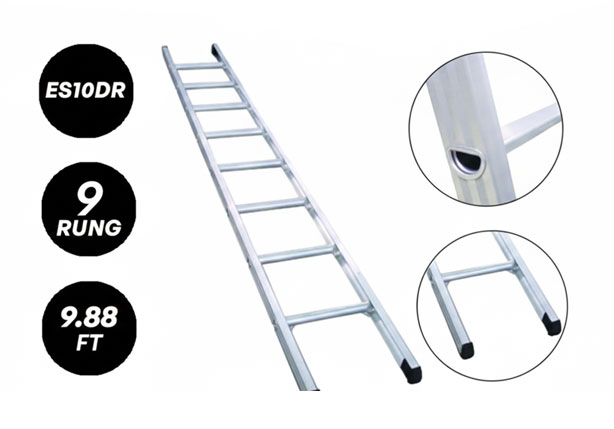

An Aluminum Scaffolding Straight Ladder is a durable, solid (non-folding) access ladder made from a high-grade aluminium alloy which offers excellent strength-to-weight ratio. The aluminum scaffolding straight ladder is designed with slip resistant rungs, sturdy side rails, and reliable fixing points for safe climbing and secure positioning when fixed with scaffolding structures.

Applicable Standards & Compliance

ALTRAD SPAR's aluminum straight ladder meets the specifications of, and has been tested in accordance with the following international standards:

  • EN 131-1 / EN 131-2 Requirements and testing for portable ladders
  • BS EN 131 European ladder safety standard
  • OSHA 1926.1053 Ladders (Construction Industry USA)
  • BS EN 12811-1 Access and egress requirements within scaffolding systems cantilever, and suspended scaffolds.

Note: Aluminium ladders on Aramco and SABIC sites are only permitted for access use, with site-specific approval under Aramco GI 8.001 (Access & Egress provisions). These ladders are not load-bearing scaffold components.

Technical Specifications

  • Material: Aluminium Alloy (High-Strength, Corrosion Resistant)
  • Ladder Type: Straight / Single Ladder
  • Rung Type: Serrated, anti-slip aluminium rungs
  • Side Rails: Extruded aluminium with reinforced profile
  • Finish: Natural aluminium (optional anodised finish)
  • Maximum Working Load: 150 kg (EN 131 compliant)
  • Fixing: Hook-on or bolted fixing to scaffold tube / structure

Standard Sizes

  • 2.0 m, 2.5 m, 3.0 m, 3.5 m, 4.0 m
  • (Custom lengths available upon request)

Safety & Design Features

  • Easy to handle and relocate thanks to its lightweight
  • Non-sparking and corrosion-resistant
  • Anti-slip rung profile for better foot traction
  • Compatible with steel and aluminium scaffold systems
  • Suitable for both indoor and outdoor environments

Typical Use Cases

  • Vertical access points within scaffold bays
  • Plant maintenance and shutdown activities
  • MEP and facility management works
  • Equipment platforms and service walkways
  • Temporary access where steel ladders are not required

Positioning within ALTRAD SPAR Portfolio

Aluminium straight ladders are part of ALTRAD SPAR's range of accessories and access equipment. These products help to deliver projects where lightweight access is sufficient, while primary load-bearing access is still obtained through steel ladders, ladder beams, and complete scaffolding systems that conform to Aramco and SABIC heavy-duty standards.
