Steel Ladders & Ladder Beams

(Access & Structural Members)

Product Overview

SPAR is involved in the creation and production of steel scaffolding, ladders, and ladder beams that are the main factors for safe access and structural integrity in the assemblies of modular scaffolding. These parts are made from high-tensile steel tubes (EN 10219 S355) and are hot-dip galvanized to prolong the material's life, in line with Aramco GI 8.001 §5.6 (Access & Egress), SABIC §9.4, and BS EN 12811-1 standards.

ALTRAD SPAR’s ladder solutions ensure safe vertical and horizontal navigation of workers, and the ladder beams serve as long-span bridging elements for decking, cantilever, and suspended scaffolds.

Key Features & Advantages

Steel Access Ladders

  • Load Rated: Designed for a two-person (2.5 kN total) load per BS EN 12811.
  • Slip-Resistant Rungs: Serrated round bar rungs for grip.
  • Universal Fit: Compatible with Ringlock, Cuplock, and tube-fittings systems.
  • Corrosion Resistant: Hot-dip galvanized finish ≥ 85 µm.
  • Quick Installation: Hook-on and bolted variants available.
  • Tested per OSHA 1926.1053: Ladder deflection < 1/50 of span.

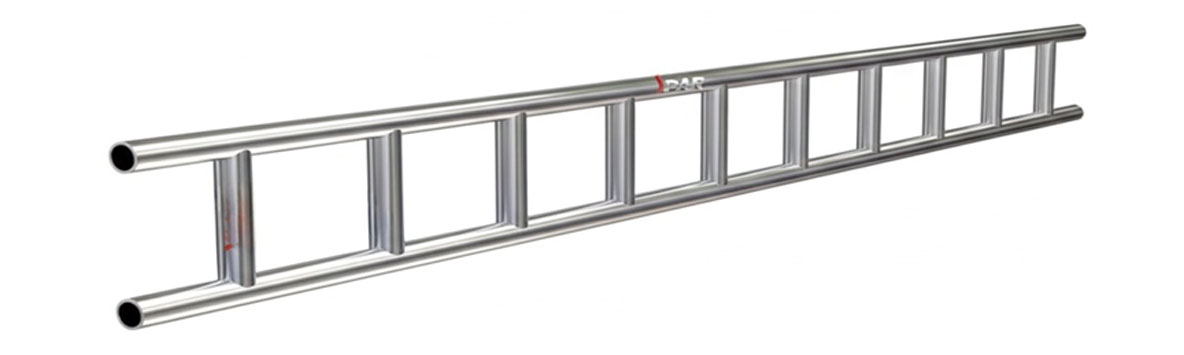

Ladder Beams

  • High Load Capacity: Span up to 6.0 m; load class 6 (3.0 kN/m²).
  • Structural Design: Parallel chord beam with tubular rungs.
  • Aramco & SABIC Approved: Designed for bridging and shoring.
  • Interchangeable Ends: Compatible with Cuplock and Ringlock connections.
  • Galvanized for Long Life: ISO 1461 certified coating.
  • Factory Load-Tested: Certified by TÃœV / SGS.

Technical Specifications

  • Material: S355 / EN 10219 Structural Steel
  • Finish: Hot-Dip Galvanized (≥ 85 µm, ISO 1461)
  • Manufacturing: MIG / COâ‚‚ Welded per ISO 3834-2
  • Testing: BS EN 12811-1, OSHA 1926

Steel Access Ladders

Item Code Length (mm) Width (mm) Tube (OD × Thk) No. of Rungs Weight (kg) Type
SP-LAD-2000 2000 400 48.3 × 3.2 6 8.5 Hook-On
SP-LAD-2500 2500 400 48.3 × 3.2 8 10.2 Hook-On
SP-LAD-3000 3000 400 48.3 × 3.2 10 12.4 Bolted
SP-LAD-4000 4000 400 48.3 × 3.2 12 14.8 Bolted

Ladder Beams

Item Code Length (mm) Depth (mm) Tube (OD × Thk) Weight (kg) Safe Load (kN/m²)
SP-LB-3000 3000 305 48.3 × 3.2 17.8 3.0
SP-LB-4000 4000 305 48.3 × 3.2 22.3 3.0
SP-LB-5000 5000 450 48.3 × 4.0 27.6 3.0
SP-LB-6000 6000 450 48.3 × 4.0 33.8 3.0

Structural Performance

Parameter Unit Result Reference
Ladder Load Capacity kN 2.5 BS EN 12811
Beam Bending Strength kN·m 7.2 ALTRAD SPARTest LB2024-03
Deflection Limit mm ≤ L/50 BS EN 12811
Slip Resistance – Pass OSHA 1926.1053
Coating Thickness µm ≥ 85 ISO 1461
Safety Factor – 1.5 Aramco GI 8.001

Compliance & Certification

Standard / Client Clause Requirement
Aramco GI 8.001 § 5.6 Access ladders and load criteria
SABIC § 9.4 § 7.3 Ladder and walkway safety standards
BS EN 12811-1 Annex C Load test methodology
BS EN 12810-1 Clause 4 Connection design and tolerance
OSHA 1926.1053 § (a)-(c) Ladder construction and slip resistance
ISO 1461 Clause 6 Galvanizing inspection

Quality Assurance (QA / QC)

Inspection Process:

  • Tube and raw material certification (EN 10219).
  • Welding inspection (VT / MT 10 % sample).
  • Dimensional tolerance ± 2 mm.
  • Coating thickness test ≥ 85 µm.
  • Proof load testing per BS EN 12811.
  • Product marking and ERP registration.

QA/QC Verification Summary

Inspection Stage Method Acceptance Criteria Frequency
Material MTC Review S355 / EN 10219 Each Batch
Dimension Gauge / Vernier ± 2 mm 100 %
Weld VT + MT No cracks / defects 10 %
Coating Elcometer ≥ 85 µm Each Lot
Load Test Frame Test ≥ 3.0 kN/m² Quarterly
Marking Visual Batch + Year 100 %

Identification & Traceability

Each ladder and beam features embossed stamping with batch and year information, plus QR codes linking to ALTRAD SPAR’s ERP system for full traceability.

Each ladder and beam carries embossed stamping:

ALTRAD SPAR| LADDER / LADDER BEAM | SIZE | BATCH No. | YEAR
Include QR traceability linked to ALTRAD SPAR’s ERP system, ensuring technical personnel and inspectors feel assured of product origin and quality documentation.

Applications

  • Vertical access scaffolding towers
  • Bridging decks and suspended scaffolds
  • Shoring and formwork structures
  • Industrial maintenance and tank scaffolds
  • Marine and offshore platforms

Maintenance & Inspection

Item Frequency Method
Visual Check Before use Inspect welds and rungs
Coating Check Every 3 years Verify ≥ 85 µm
Load Retest Every 5 years ≥ 3.0 kN/m²
Storage After use Stack horizontally, dry area
