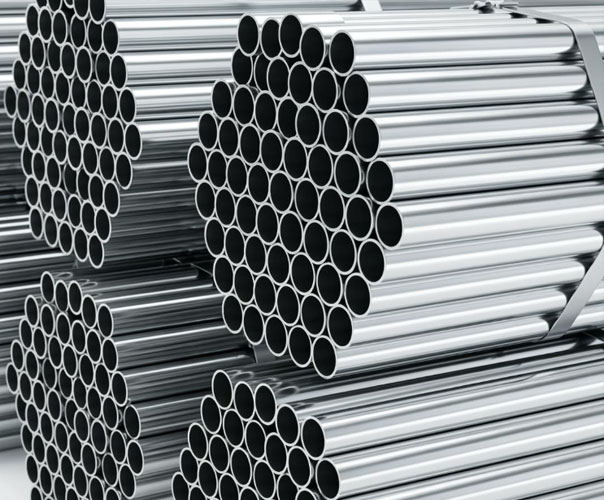

Galvanized Scaffolding Tubes

Comprehensive Solutions for Construction and Industrial Access Systems

Galvanized Scaffolding Tubes

EN 10219 / EN 39 – 48.3 mm Scaffolding Steel Tubes (3.2 mm & 4.0 mm)

SPAR manufactures and supplies high-quality galvanized scaffolding tubes designed for heavy-duty construction, industrial scaffolding, and access systems. These tubes are produced in accordance with internationally recognized standards including EN 10219, EN 39, and BS 1139, ensuring reliable structural performance, dimensional accuracy, and long service life.

Galvanized scaffolding tubes are widely used in tube-and-coupler scaffolding systems, which remain one of the most flexible and reliable scaffold structures used worldwide. The globally standardized 48.3 mm outer diameter steel tube is designed to ensure compatibility with standard scaffolding couplers and fittings, enabling safe and efficient assembly of scaffolding structures across construction, infrastructure, and industrial projects.

Product Overview

SPAR galvanized scaffolding tubes are manufactured using ERW (Electric Resistance Welded) steel tube technology, ensuring uniform wall thickness, excellent weld integrity, and consistent mechanical performance. The tubes are finished with hot-dip galvanization, providing superior corrosion resistance and extended service life in harsh environments such as construction sites, oil & gas facilities, refineries, shipyards, and offshore projects. These tubes serve as the primary structural members of scaffolding systems, forming standards, ledgers, braces, and transoms that support working platforms and scaffold boards.

Key Features and Advantages

  • High Structural Strength: Manufactured from structural steel grades designed to meet international scaffolding standards, ensuring high load-bearing capacity and structural stability.
  • Corrosion Protection: Hot-dip galvanized coating protects the steel surface from corrosion, extending service life even in humid or coastal environments.
  • Precision Manufacturing: Produced using advanced tube mills with strict dimensional tolerance control.
  • Universal Compatibility:48.3 mm OD tubes are compatible with:
  • Tube & coupler scaffolding
  • Ringlock scaffolding
  • Cuplock scaffolding
  • Modular scaffolding systems
  • Long Service Life: Galvanized coating significantly reduces maintenance and replacement costs for scaffolding rental companies and contractors.

Standard Technical Specifications

Parameter Specification
Product Type Galvanized Scaffolding Tube
Outside Diameter 48.3 mm
Wall Thickness 3.2 mm / 4.0 mm
Manufacturing Process ERW Steel Tube
Surface Finish Hot-Dip Galvanized
Steel Grade S235 / S355 Structural Steel
Standard Length Up to 6.0 meters
End Finish Plain End / Deburred

Industry Standards

SPAR scaffolding tubes are manufactured according to the following international standards:

  • EN 10219: Cold-formed welded structural hollow sections.
  • EN 39: Steel tubes for scaffolding specifying dimensional tolerances and mechanical properties.
  • BS 1139: Metal scaffolding tubes and fittings standard widely used in construction and industrial projects.

Compliance with these standards ensures:

  • structural safety
  • dimensional consistency
  • compatibility with global scaffolding systems

Dimensions and Weight Chart

Tube Size Thickness Weight per Meter Weight of 6 m Tube
48.3 mm 3.2 mm 3.6 kg/m 21.6 kg
48.3 mm 4.0 mm 4.5 kg/m 27.0 kg

Custom lengths and project-specific specifications are available.

Structural Applications

Galvanized scaffolding tubes are used as the structural framework in scaffolding systems. Typical structural elements include:

  • Standards (vertical load-bearing members)
  • Ledgers (horizontal support members)
  • Transoms (platform supports)
  • Diagonal braces (structural stability)

These elements combine to form a safe temporary access structure used in construction and industrial projects.

Typical Industries

  • Construction and infrastructure projects
  • Oil & gas facilities
  • Petrochemical plants
  • Power plants
  • Shipyards
  • Industrial maintenance projects
  • Refineries and LNG terminals

Why Choose SPAR Galvanized Scaffolding Tubes

  • Manufactured to international standards
  • High structural strength steel
  • Corrosion-resistant galvanized finish
  • Compatible with global scaffolding systems
  • Reliable supply for large EPC projects

SPAR scaffolding tubes provide durable, safe, and high-performance solutions for modern scaffolding systems.
