Cuplock Scaffolding System

Product Overview

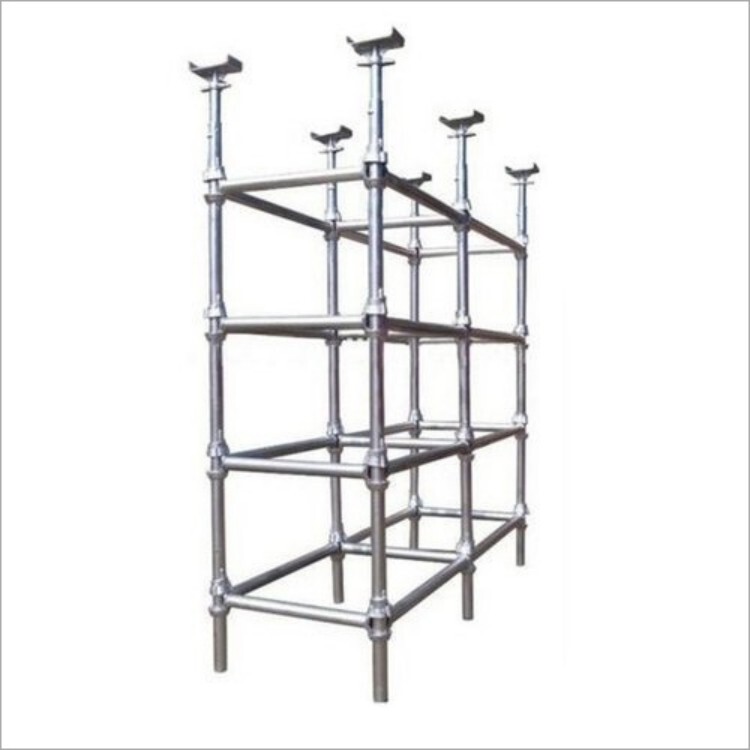

ALTRAD SPAR Cuplock System is a modular, multipurpose scaffolding and access solution designed for multi-level, industrial scaffold applications across oil and gas, petrochemical, power plant, and infrastructure projects. The key system features are summarized in Table 1 below for enhanced clarity and visual integration.

Key Features of SP LOCK Cuplock System

Feature Description
Modular Design Adaptable for various project configurations and site conditions
Multi-Level Access Enables the construction of multi-tier platforms
High Load Capacity Suitable for heavy-duty industrial environments
Rapid Assembly Bolt-free connections for faster erection and dismantling
Compliance Conforms to Aramco GI 8.001 and BS EN standards

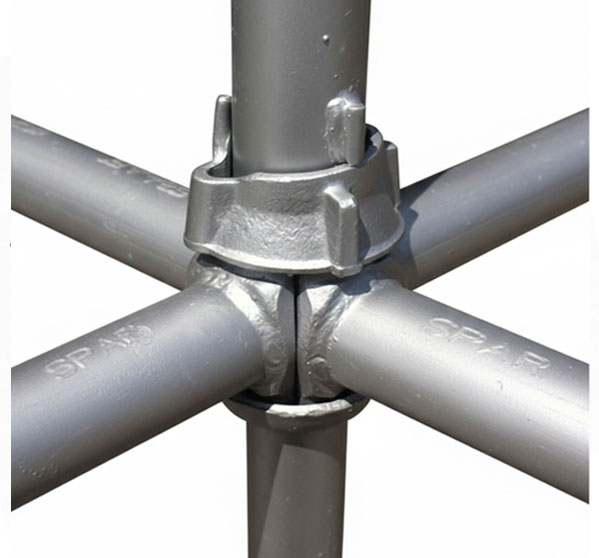

ALTRAD SPAR Cuplock is intended to comply with refinery and plant shutdown standards referenced in the reference documents, as well as general Industrial standards for use in oil and gas, petrochemical plants, and infrastructure projects. The system components are tubular verticals with four closed profiles. Each 500 mm is equipped with top and bottom cups, while horizontal ledgers have flat forged ends that fit securely into the cups. The positive locking system used here provides stability and the rigidity of Couplings that are not loose.

Working

  • Industrial and maintenance scaffolding
  • Task scaffolds and working platforms
  • Temporary support and form work
  • Tanks and vessels
  • Offshore and marine
  • DFE can also serve as a source of access and working platforms on the decks of ships and oil installations at sea.

System Advantages

Strength: High load capacity of up to 57 kN per standard. During the 2023 Ras Tanura turnaround, Cuplok scaffolding significantly reduced erection hours by 18%, showcasing the efficiency and reliability of our systems. The built-in ledger locking mechanism eliminates the problem of dislodgement, ensuring safety. The built-in ledger locking mechanism eliminates the problem of dislodgement, ensuring safety. The scaffold is produced by either complete hot-dip galvanization to a thickness of at least 85 microns or by dip-painting, ensuring it is rust-resistant. It meets the conformity standards BS EN 1139 / EN 12811 and can be interchanged with other major global scaffold systems.

Batch

Each component's batch number connects it to the QA/QC system and enables traceability up to the ISO 9001 standard.

System Components

Component Function
Standard (Vertical Post) Primary vertical load member fitted with top and bottom cups at 500 mm centers.
Ledger (Horizontal Member) Provides horizontal support and lateral bracing; connects to the cups on the standards.
Transom Supports boards or planks across the scaffold width, providing a working platform base.
Base Jack / Adjustable Jack Provides leveling and load transfer to ground surfaces; adjustable for uneven terrain.
U-Head Jack Used at the top of shoring applications for supporting beams or formwork.
Universal Jack Dual-purpose jack suitable for both top and bottom-support applications.

Technical Specifications

  • Material: High-strength steel tubes conforming to EN 10219 / S355 JR
  • Finish: Dipped, Painted, and Hot-Dip Galvanized to ISO 1461
  • Welding: CO₂ MIG per ISO 3834-2
  • Manufacturing Standard: BS EN 74, BS EN 12811

Dimensional & Load Data (Typical Values)

Component Tube OD (mm) Wall Thickness (mm) Length (m) Weight (kg) Safe Working Load (kN)
Standard 0.5 m 48.3 3.2 0.5 2.6 57
Standard 1.0 m 48.3 3.2 1.0 5.2 57
Standard 2.0 m 48.3 3.2 2.0 10.3 57
Ledger 1.2 m 48.3 3.2 1.2 4.2 6.3
Ledger 1.8 m 48.3 3.2 1.8 6.1 6.3
Transom 1.3 m 48.3 3.2 1.3 4.6 4.5
Transom 1.8 m 48.3 3.2 1.8 6.3 4.5
Base Jack 36 4.0 0.6 3.8 45
U-Head Jack 36 4.0 0.6 4.1 45
Universal Jack 36 4.0 0.6 4.0 45
(Values derived from ALTRAD SPARinternal test reports per BS EN 12811 Annex D)

Compliance & Standards

Standard Reference Description
Aramco GI 8.001 Safety requirements for scaffold construction, erection, and inspection.
SABIC § 9.4 Minimum mechanical properties and inspection intervals for scaffolding materials.
BS EN 74 Section 5.2 Requirements for couplers, fittings, and connectors.
BS EN 12811 Part 1 Temporary works equipment – performance and test methods.
ISO 3834-2 Clause 8 Welding quality requirements for structural components.
ISO 1461 Clause 6 Hot-dip galvanizing coating specifications.

All components are tested and certified under ALTRAD SPARQA laboratory conditions. Test certificates and inspection records are maintained in compliance with Aramco and SABIC audit requirements.

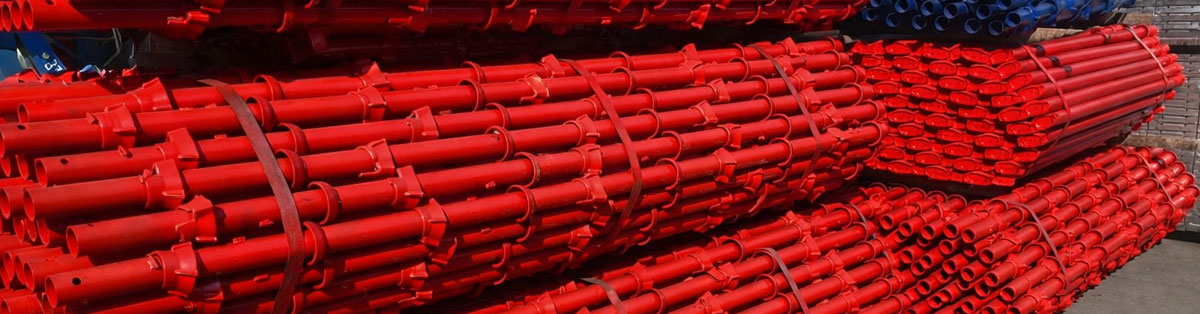

Quality Assurance & Inspection

  • Material inspection and tracing of the heat number.
  • Welding inspection (visual + NDT) according to ISO 3834-2.
  • Galvanizing thickness measurement by magnetic gauge (≥ 85 µm).
  • Dimensional and alignment checking according to BS EN 1139.
  • Proof loading at 1.5× the rated load.
  • Final stamping and batch ‍‌‍‍‌numbering.

QA/QC Summary

Checkpoint Method Frequency Standard
Material Chemistry Mill Test Certificate Every batch EN 10219
Galvanizing Thickness Coating Gauge Each lot ISO 1461
Load Test Hydraulic Frame Quarterly BS EN 12811
Dimensional Tolerance Vernier & Jig 100% BS 1139
Welding Inspection Visual + NDT 10% sample ISO 3834-2
Marking & Traceability Engraved / Stamped 100% SPAR QA SOP

System Identification

Every‍‌‍‍‌ component is marked with:

  • Batch Number
  • Heat Number
  • Load Class
  • SPAR QA Inspector ID.

This provides complete traceability during audits at Aramco and SABIC.

Typical Applications

  • Refinery and Petrochemical Maintenance
  • Industrial Turnaround Scaffolding
  • High-Rise Access Platforms
  • Shoring and Falsework Towers.
  • Bridge and Tank Formworks
  • Confined Space Access Solutions
